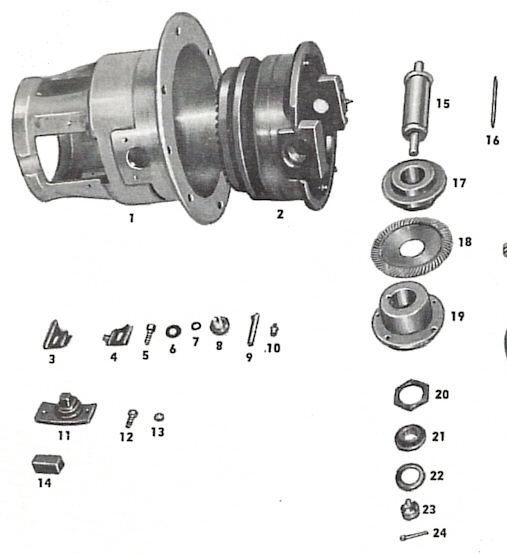

Turntable Parts

Transmission Parts

Parts List (Turntable)

Parts List (Transmission)

#36/#37: 9 or 11 tooth pinion and shaft
#38: Set screw
#39: Rubber stop cushion

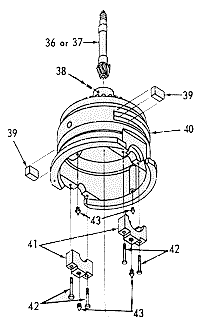

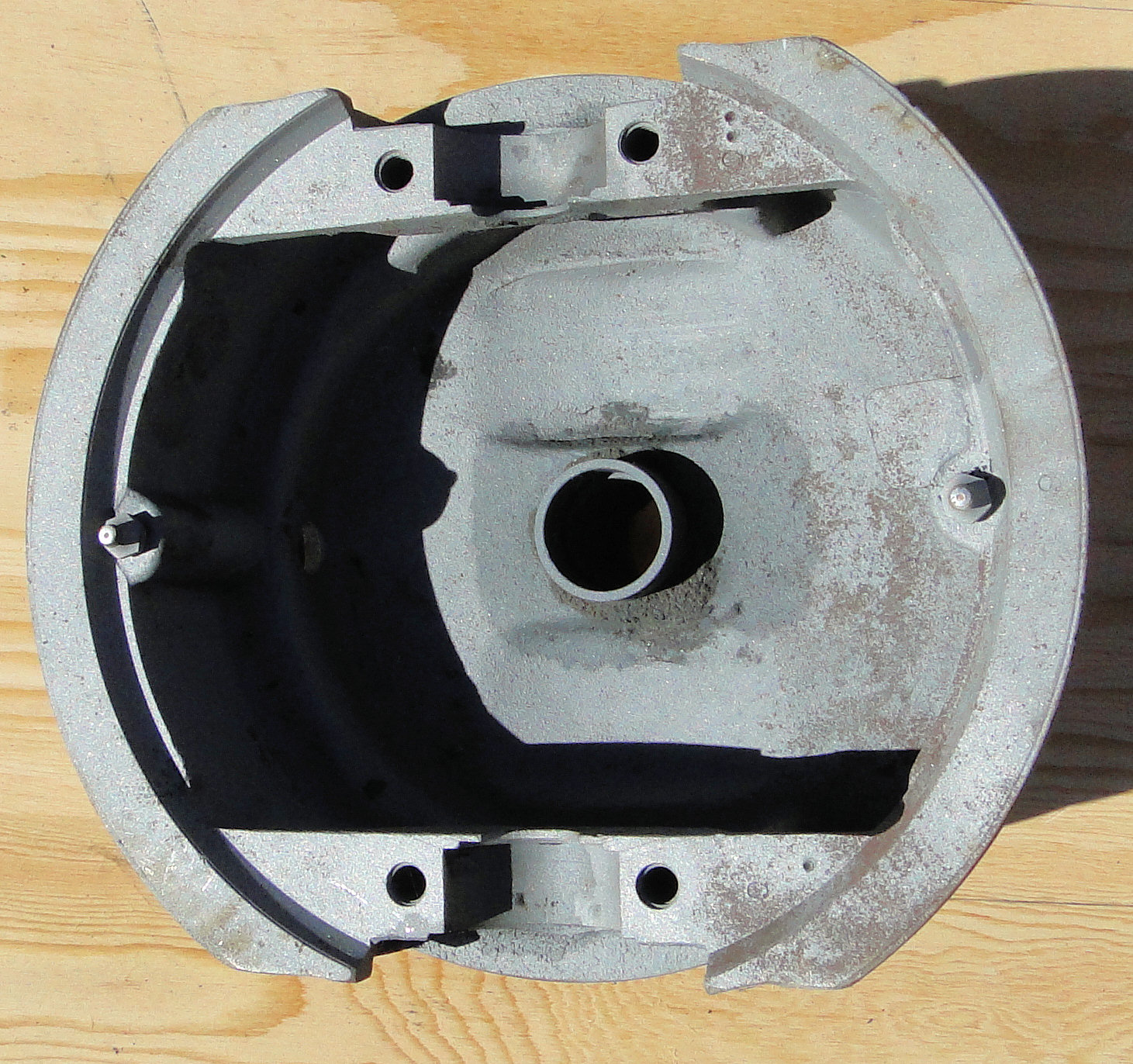

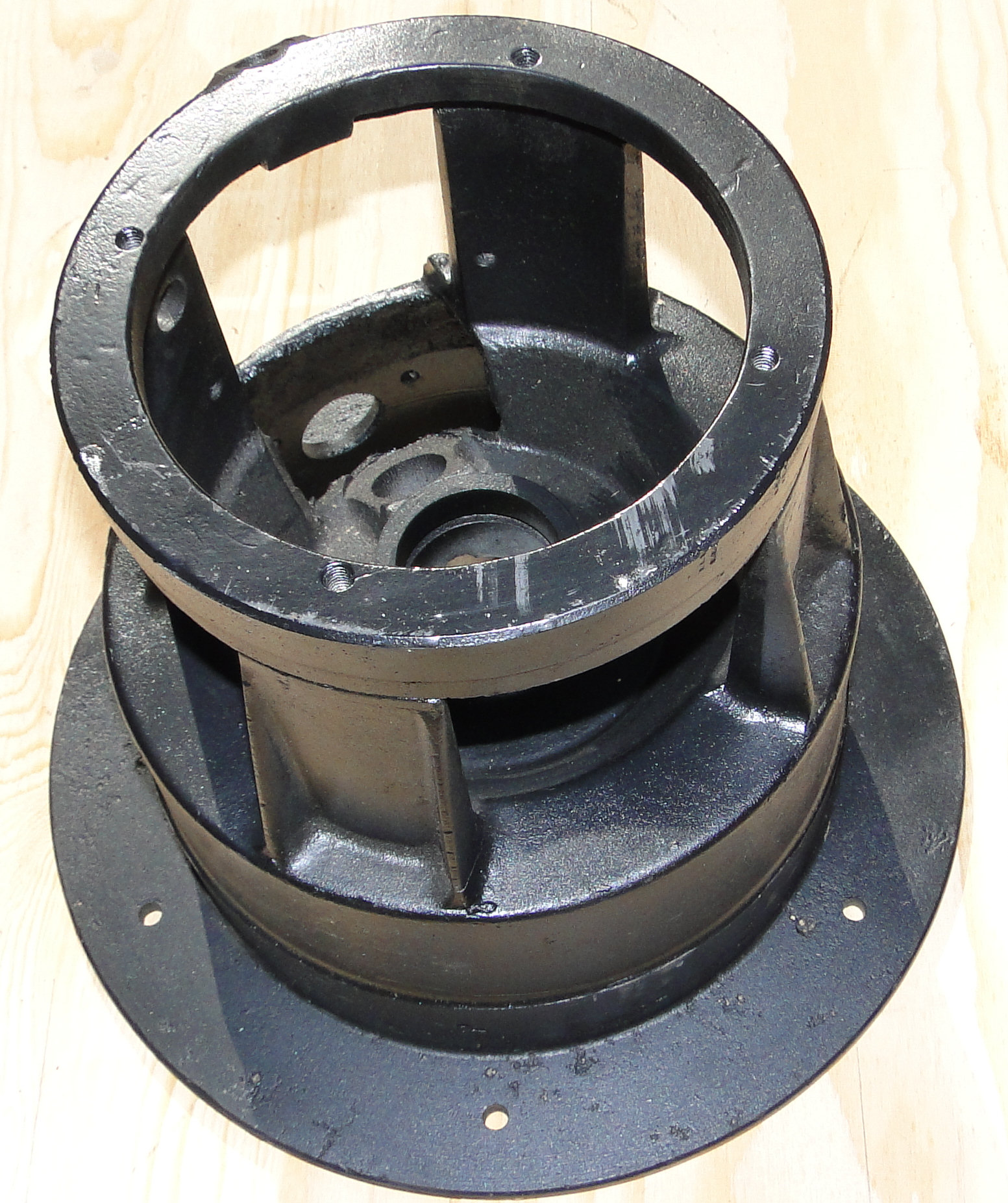

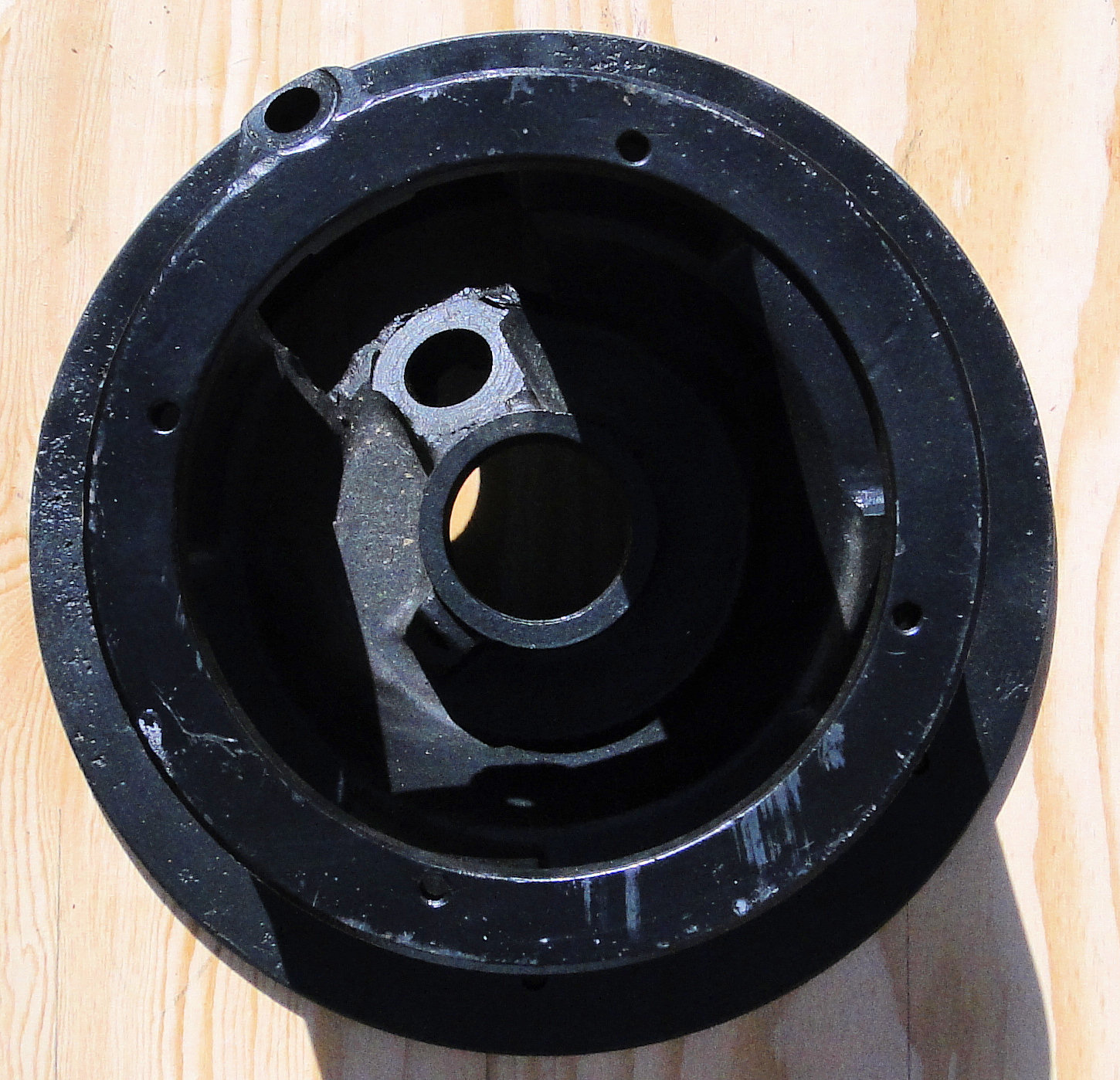

#40: Turntable & Transmission housing
#41: Turntable bearing cap
#42: Cap screws
#43: Alemite lubrication fitting
#47: Turntable housing assembly
#56: Turntable and Transmission housing assembly
#66: Turntable and Transmission

#25: Alemite lubrication fitting; extended

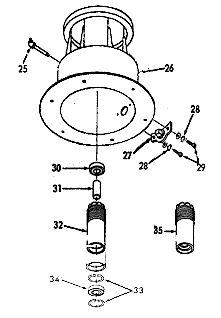

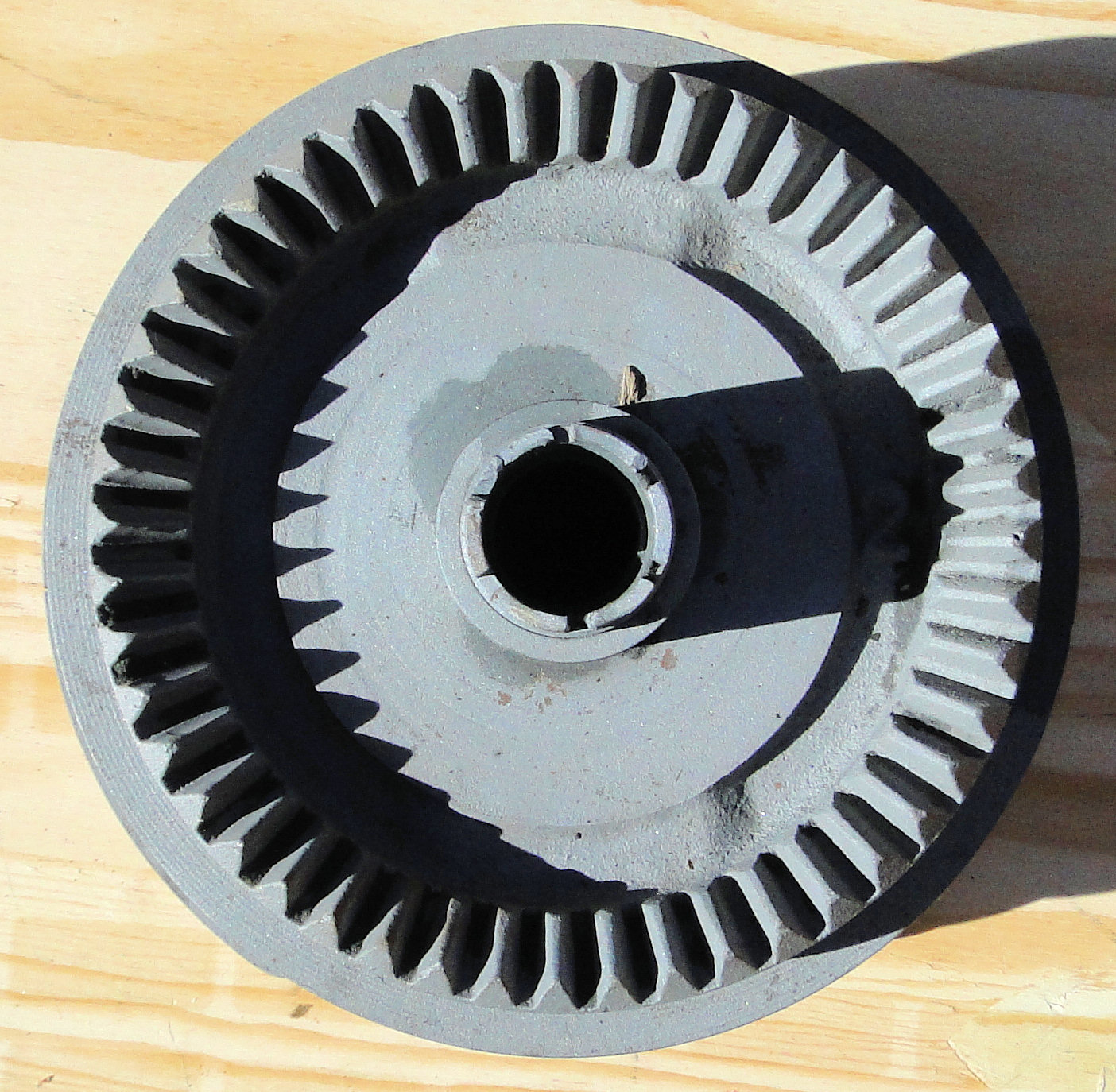

#26: Aluminum turntable housing
#27: Stop lug
#28: Lock washers
#29: Cap screw
#30: Ball bearing for threaded pinion shaft


#31: Spacer
#32: Pinion adjusting sleeve and bearing holder
#33: Bearing retaining clip
#34: Ball bearing for end of pinion shaft
#35: Adjusting sleeve assembly (#30 through #34)

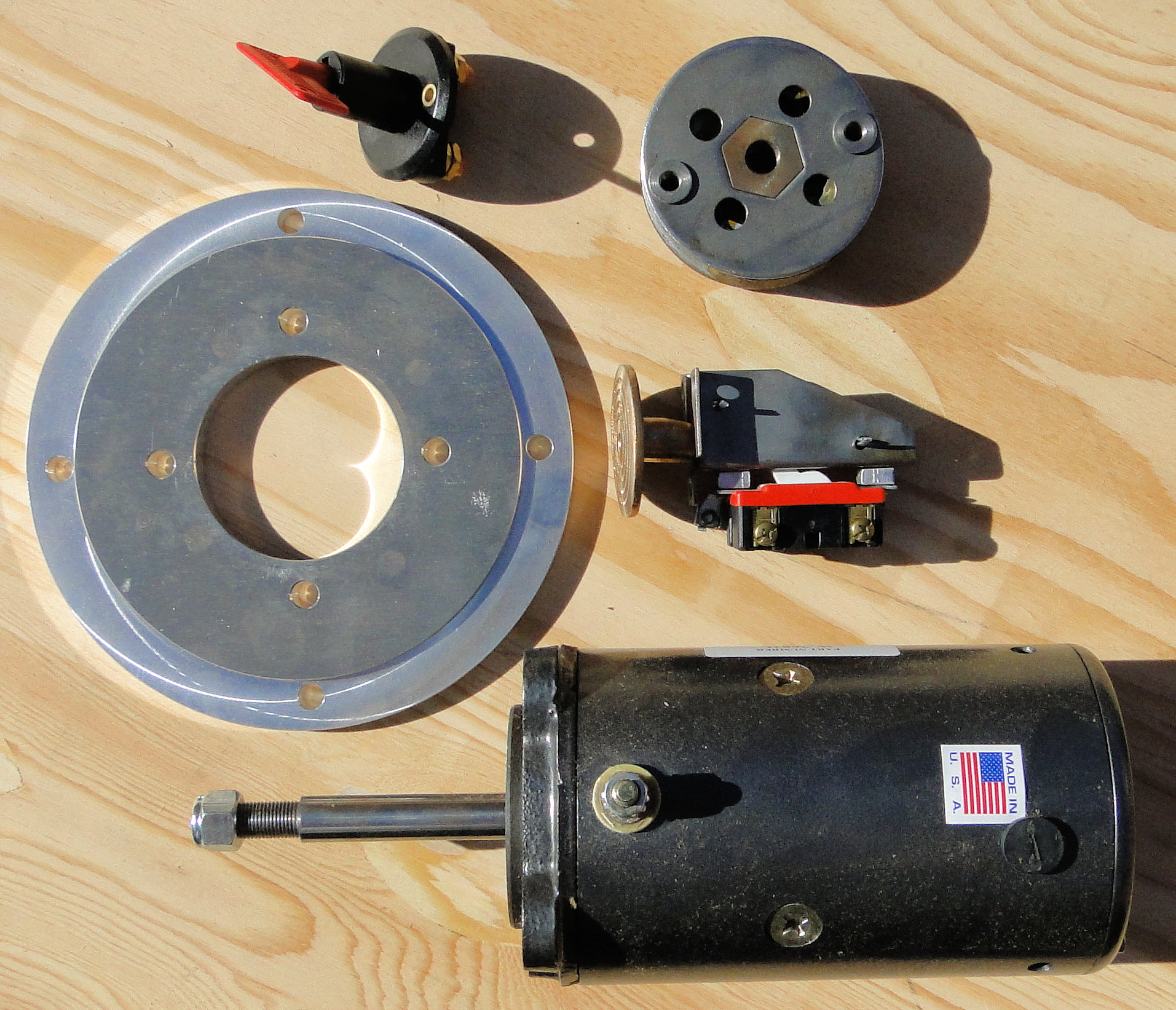

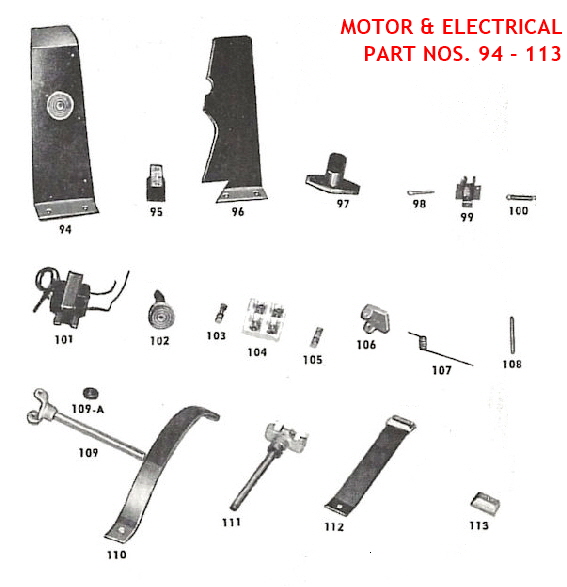

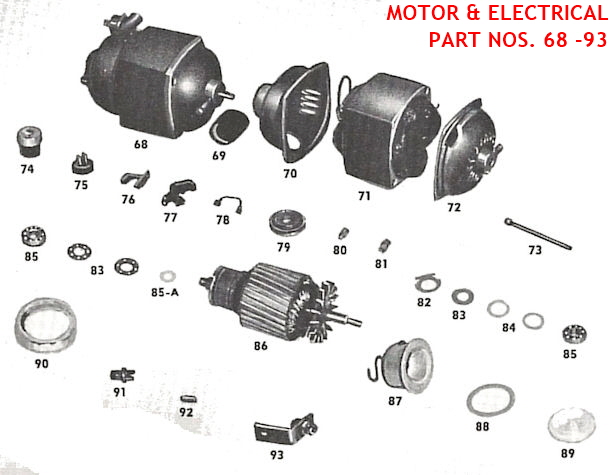

Motor Unit Parts

Parts List (Motor Unit)

#2: Motor; 115 volt w/connector, bracket, and screws
#3: Bracket for male connector
#4: Screws; for bracket #3
#5: Male connector
#6: Screws for male connector
#7: Female connector
#8: Motor bolts

#9: Spacing washer for clutch
#10: Clutch
#12: Clutch top cover plate
#21: Clutch bottom plate
#22: Clutch shoes
#23: Clutch housing
#24: Lock nut

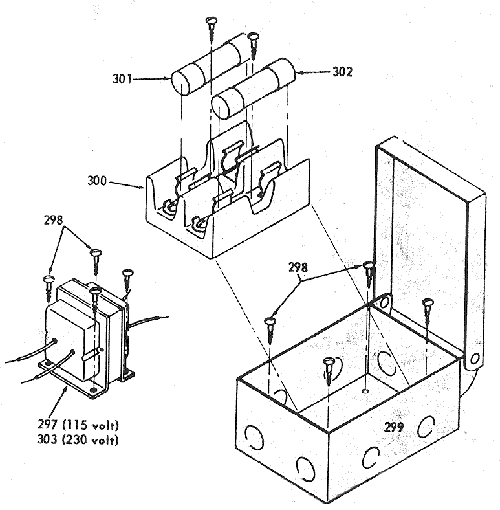

Electrical Parts (Fuse Box)

Parts List (Fuse Box)

#297: 110 volt transformer
#298: Wood screws
#299: Fuse box
#300: Fuse block

#301: 30 amp fuse
#302: 10 amp fuse
#303: 220 volt transformer

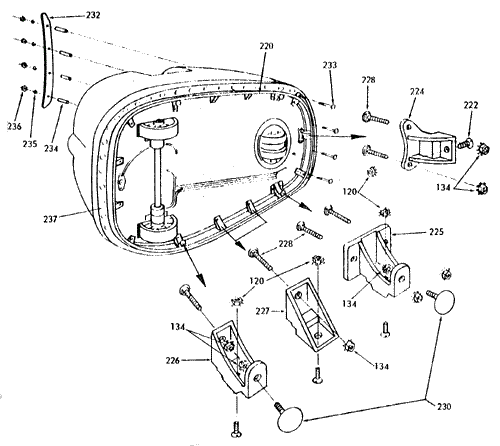

Guard Rim Parts

Parts List (Guard Rim)

#134: Kep nut
#220: Guard rim, w/bumper guard
#222: Flat head screw
#224: Bracket; front
#225: Front drag button bracket
#226: Back drag button bracket
#226: Bracket
#228: Carriage bolt

#230: Drag plate
#232: Top rubber guard plate
#233: Carriage
#234: Spacer
#235: Lock washer
#236: Locknuts
#237: Rubber bumper

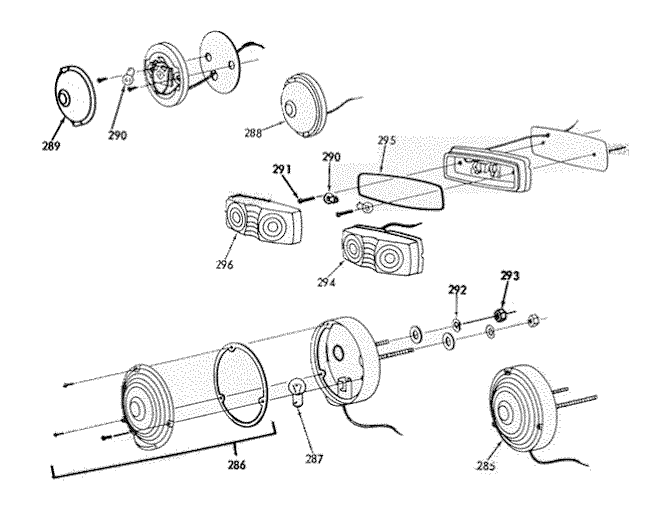

Electrical Parts (Lights)

Parts List (Lights)

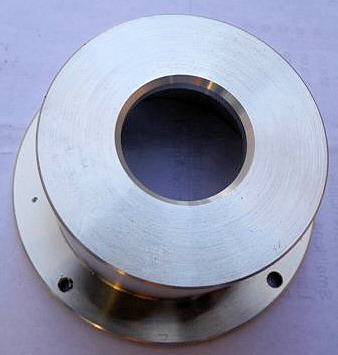

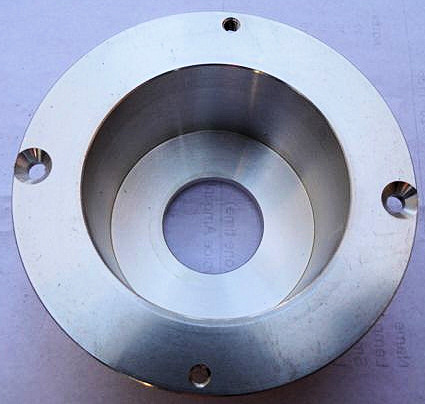

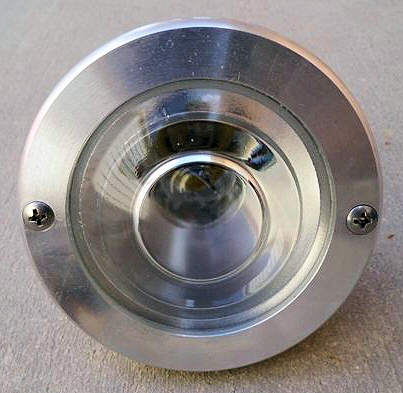

#285: Headlight, complete

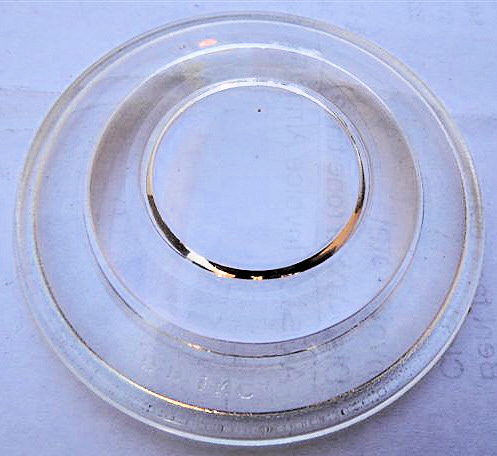

#286: Headlight Lens Kit
#287: Bulb
#288: Cowl Light, complete
#290: Bulb
#291: RH machine screw


#292: Lock Washer
#293: 8-32 Hex nut
#294: Rear Light, complete
#295: O Ring
#296: Lens

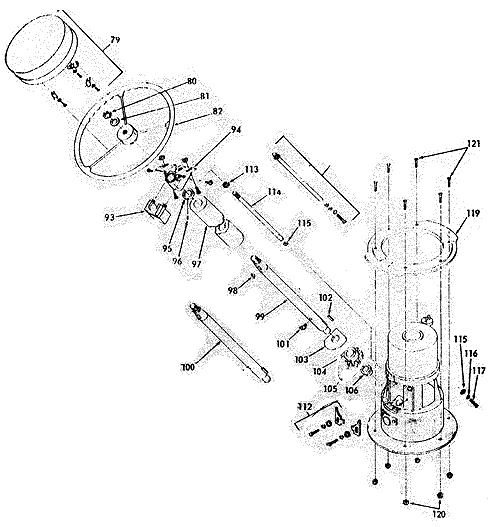

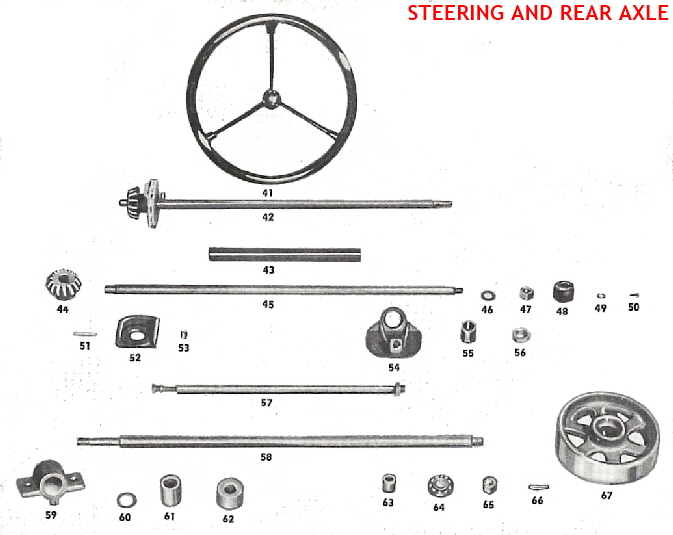

Steering Mechanism

Parts List (Steering)

#79: Steering wheel cushion
#80: Nut for steering shaft
#81: Washer for steering shaft
#82: Steering wheel
#93: Rubber jacket w/clip
#94: Steering shaft bracket assembly
#95: Collar
#96: Set screw
#97: Rubber tubing
#98: Woodruff key
#99: Steering shaft
#100: Steering shaft assembly


#101: Alemite lubrication fitting
#102: Key
#103: Pinion cover
#104; Steering pinion
#105: Set screw
#106: Bronze step bearing
#112: Hold down lug assembly
#118: Truss rod assembly (not
needed in fiberglass cars)
#119: Clamping ring
#120: Kep nut
#121: Carriage bolt

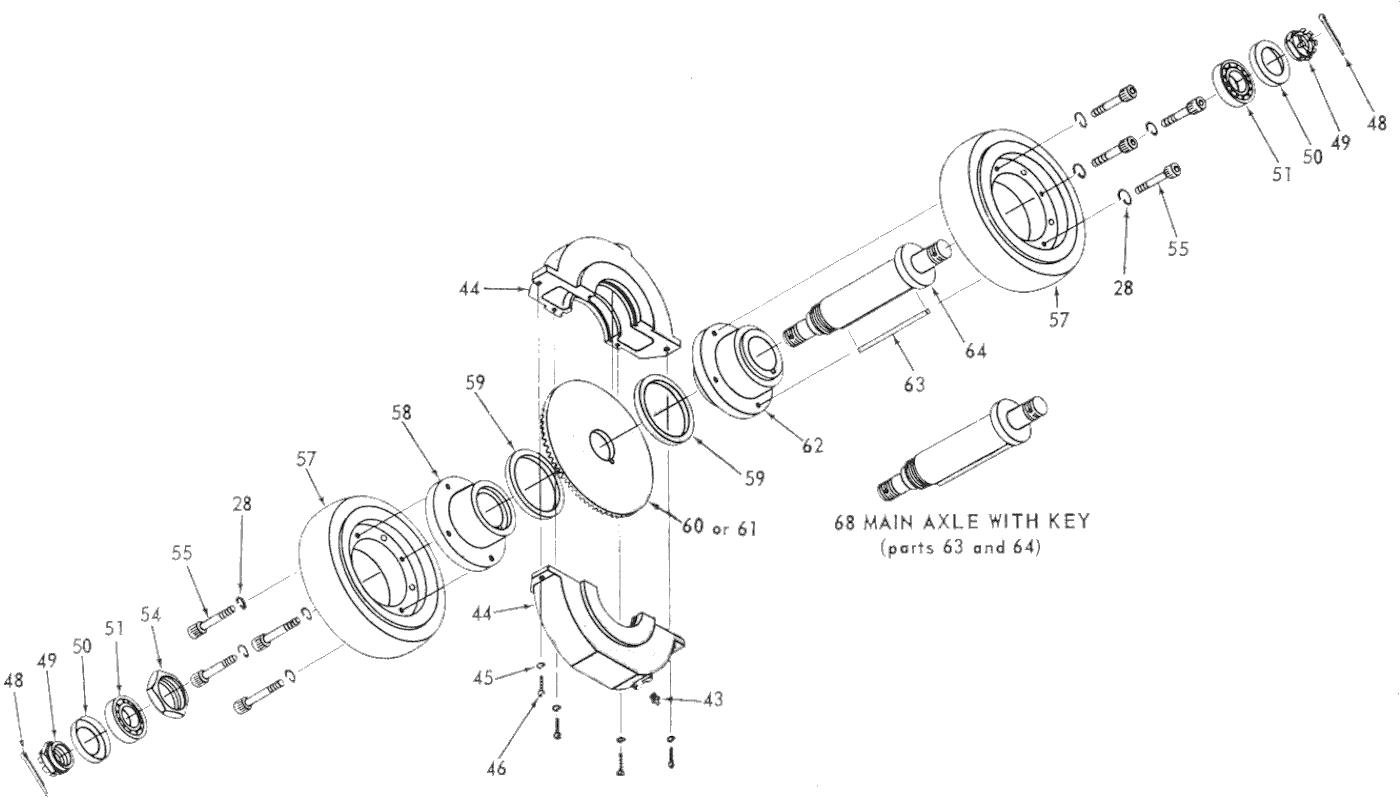

Main Axle Parts

Parts List (Main Axle)

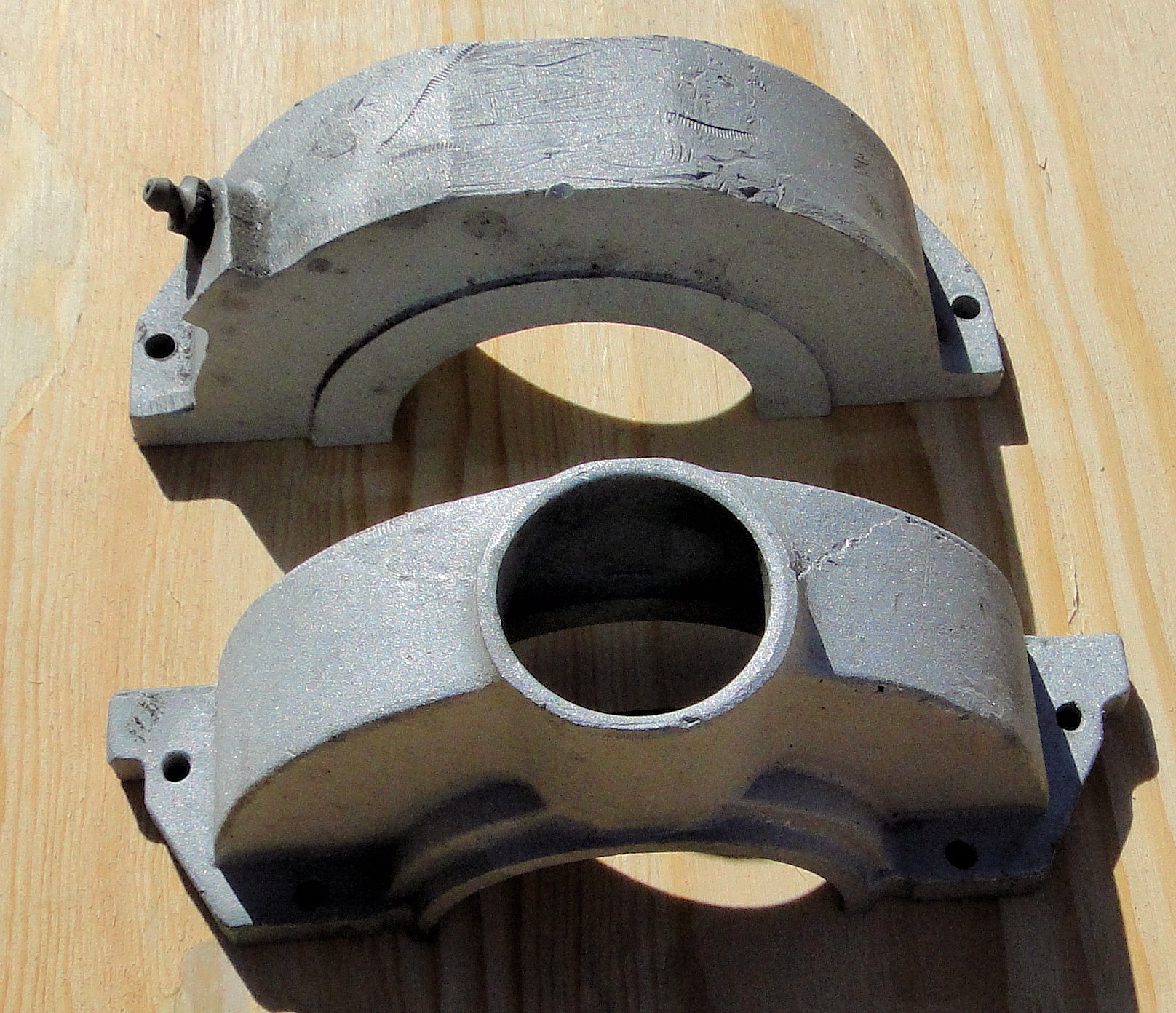

#44: Gear case
#48: Cotter pin
#49: Castellated nut
#46:
#50: Grease retainer
#51: Timkin bearing
#54: Lock nut
#55: Hollow head cap screw

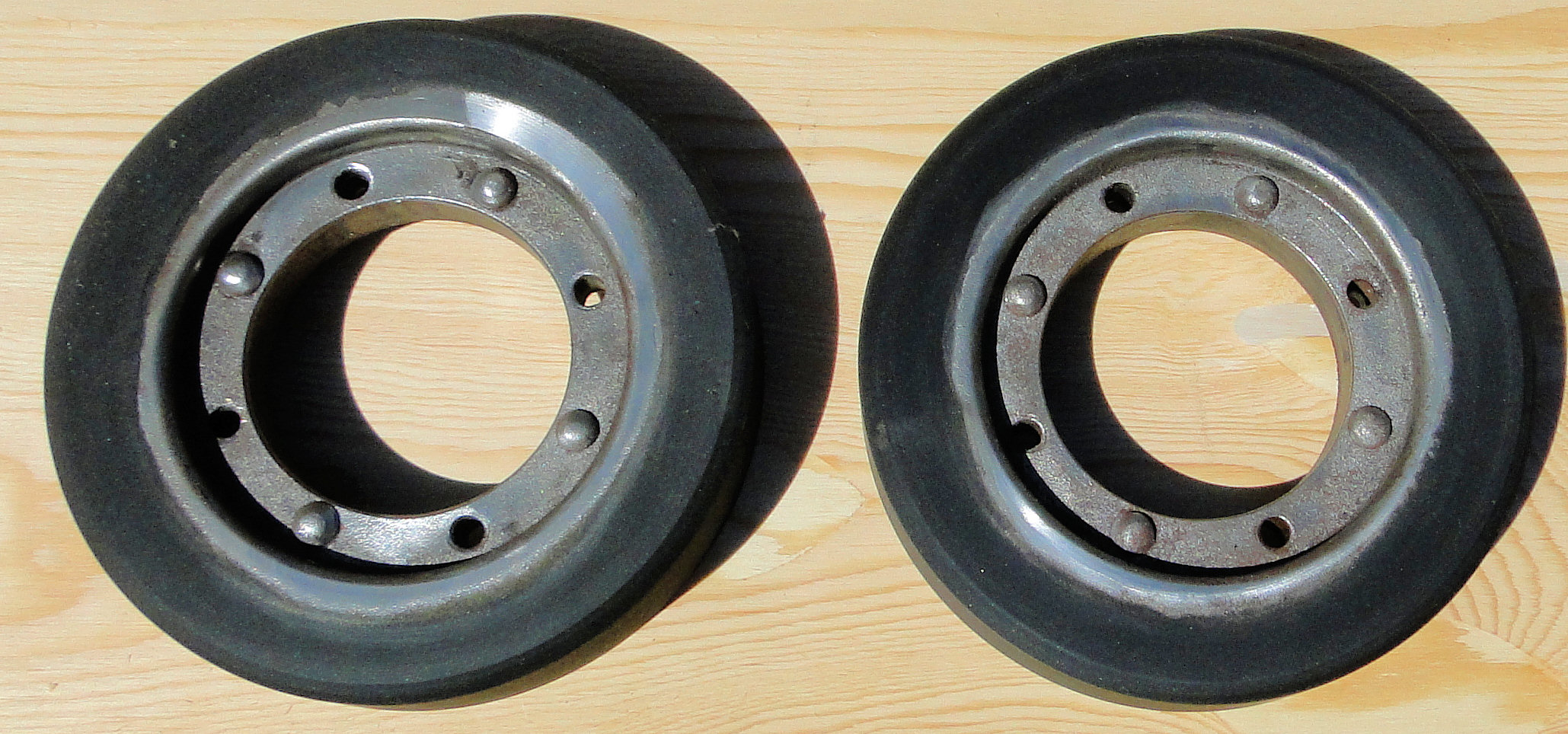

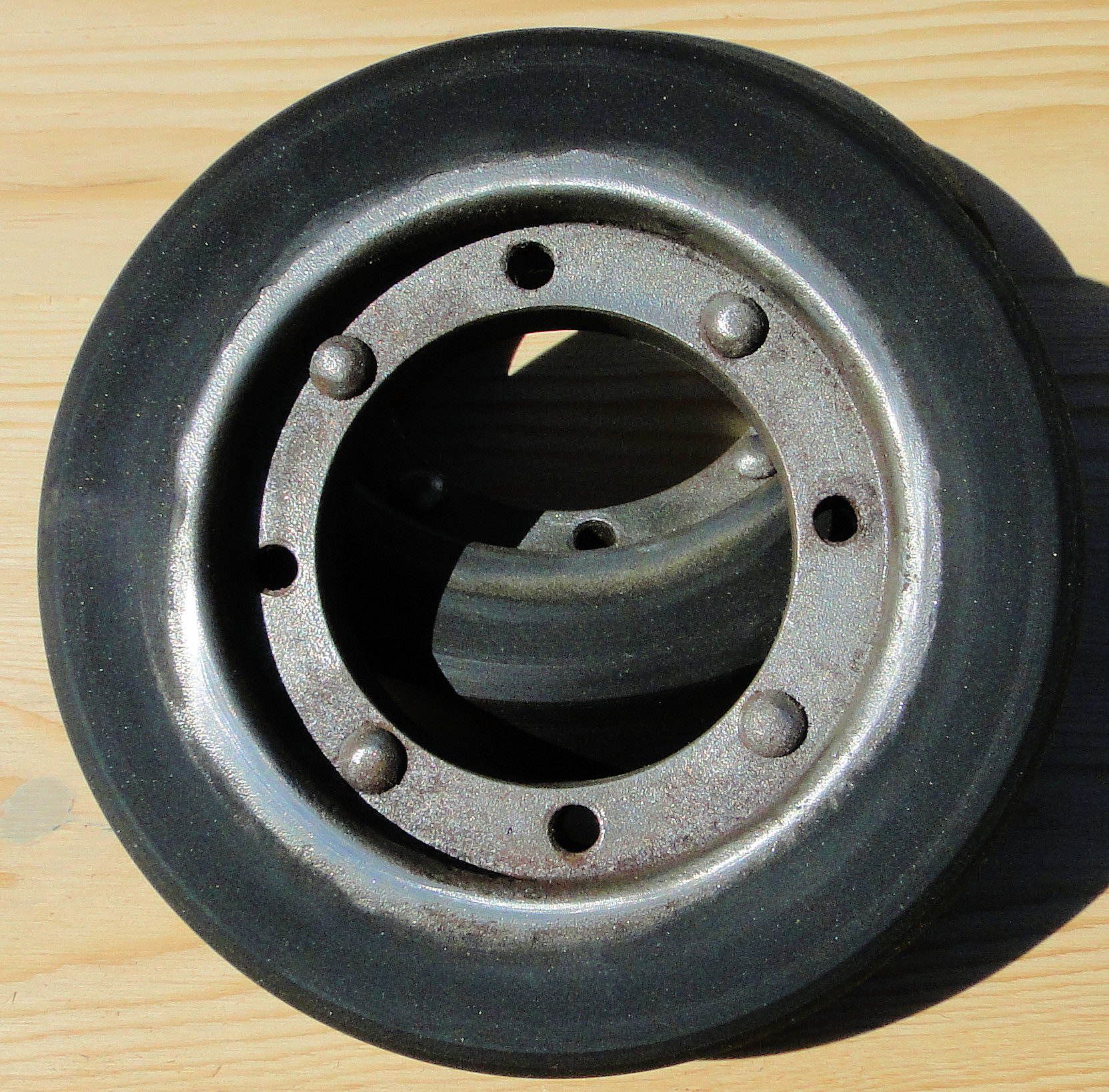

#57: Devine wheel rim
#58: Long hub
#59: Grease seal

#60: 66 tooth bevel gear; for 9 tooth pinion shaft
#61: 66 tooth bevel gear; for 11 tooth pinion shaft
#62: Short hub
#63: Key; main axle
#64: Main axle
#65: Drive unit assembly (less motor)
#67: Main axle assembly and pinion (less gear case)
#68: Main axle assembly with key (#63 & #64)

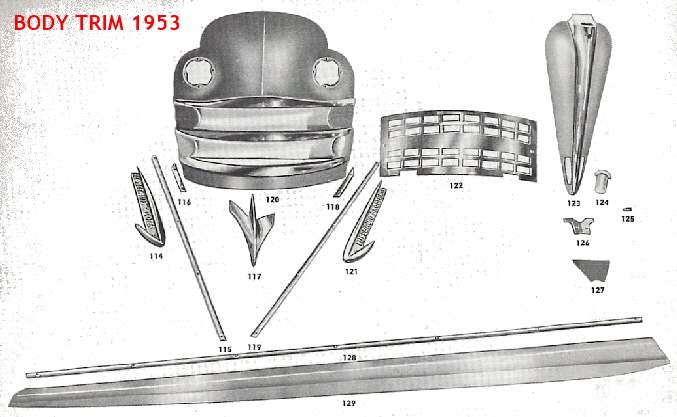

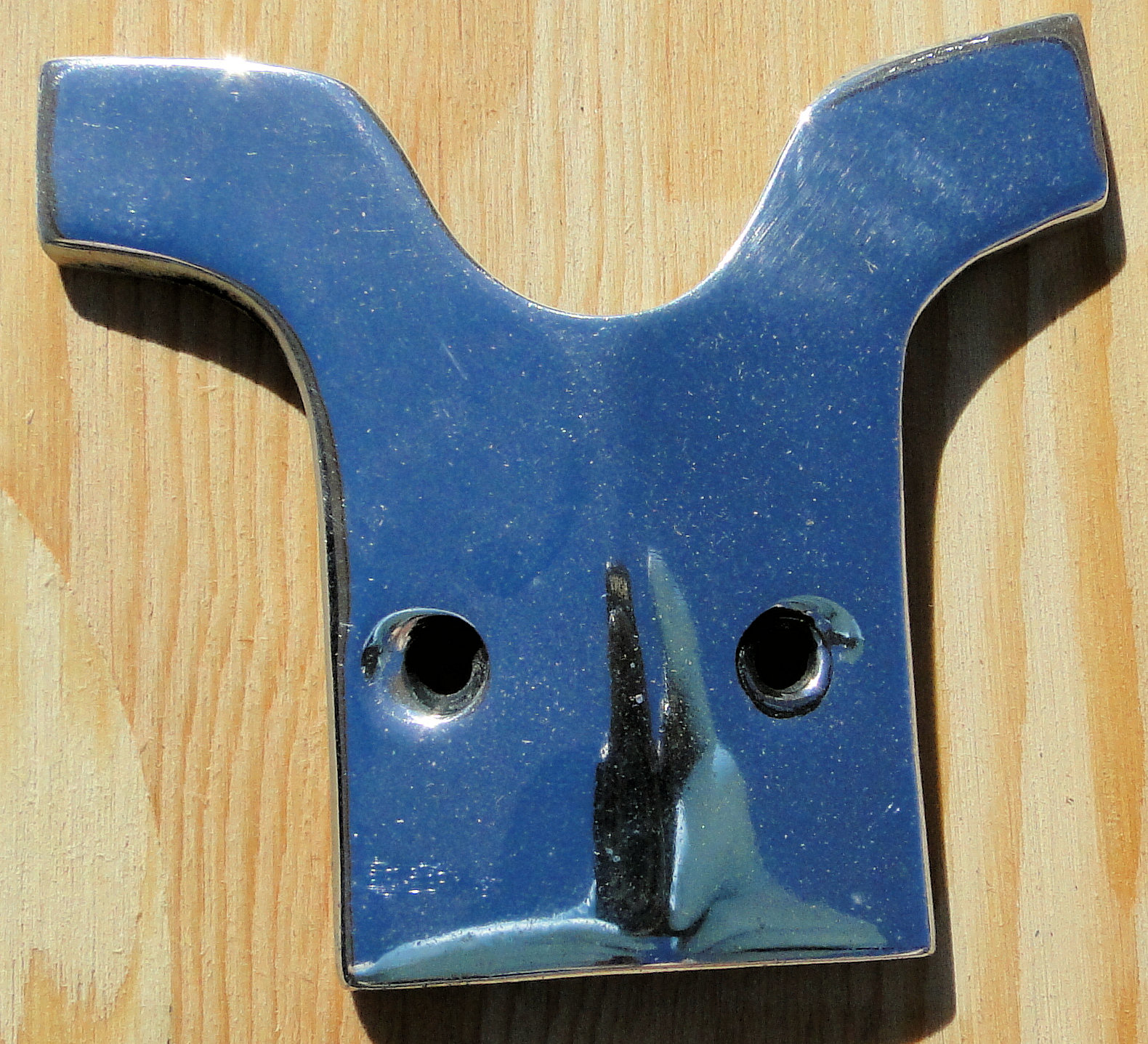

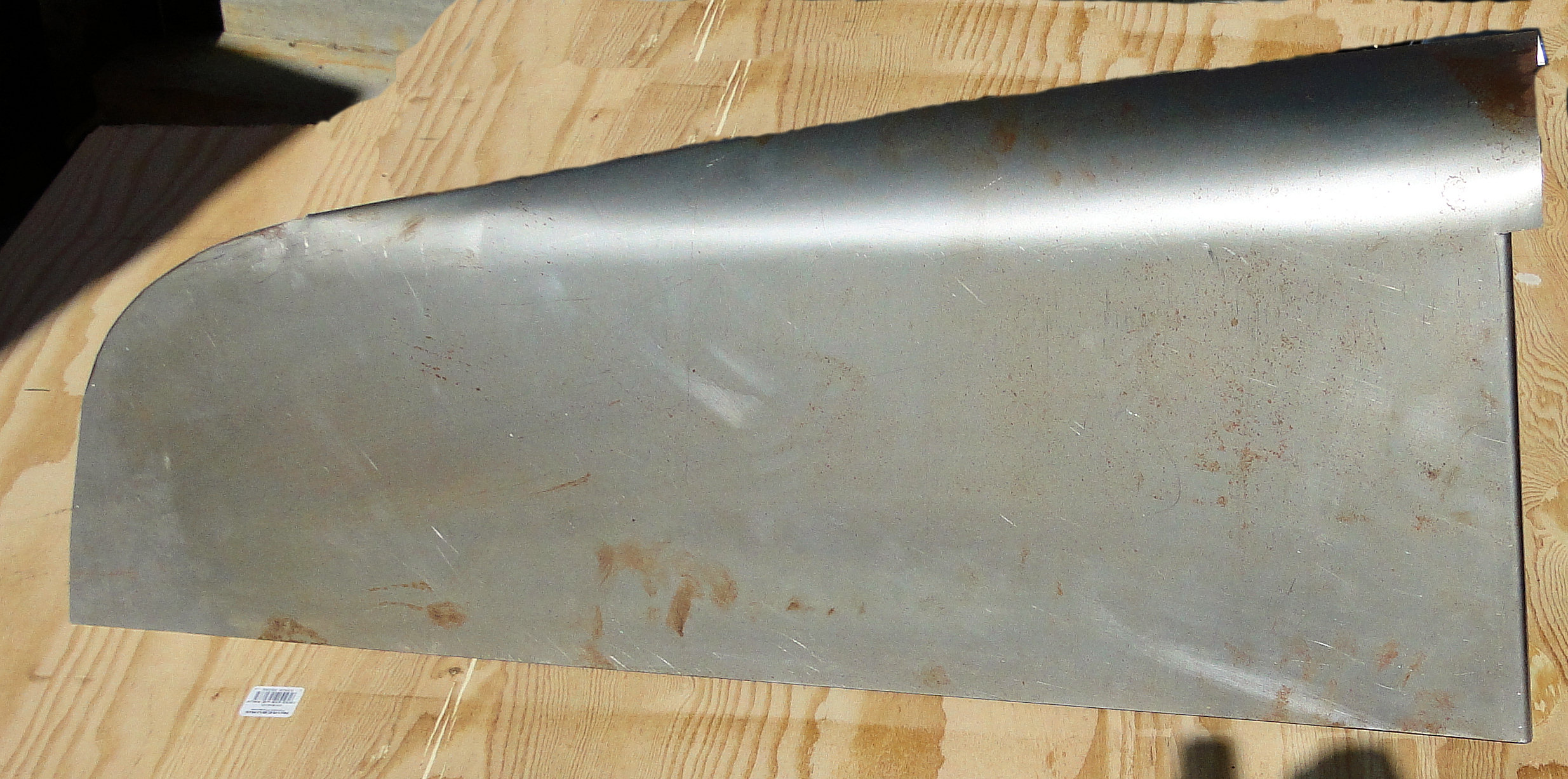

Body Trim Parts

Parts List (Body Trim)

#120; 5/16th Kep nut

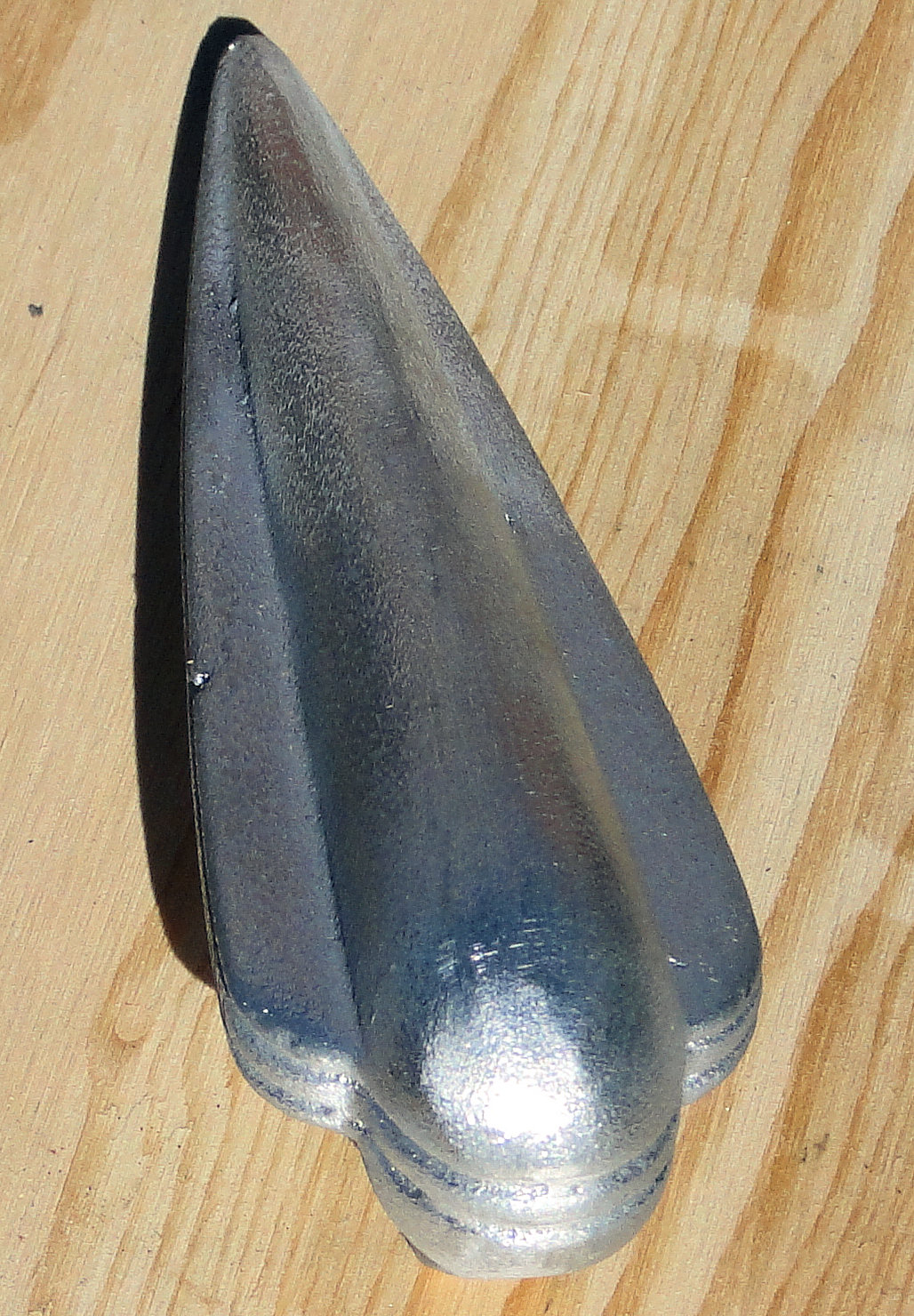

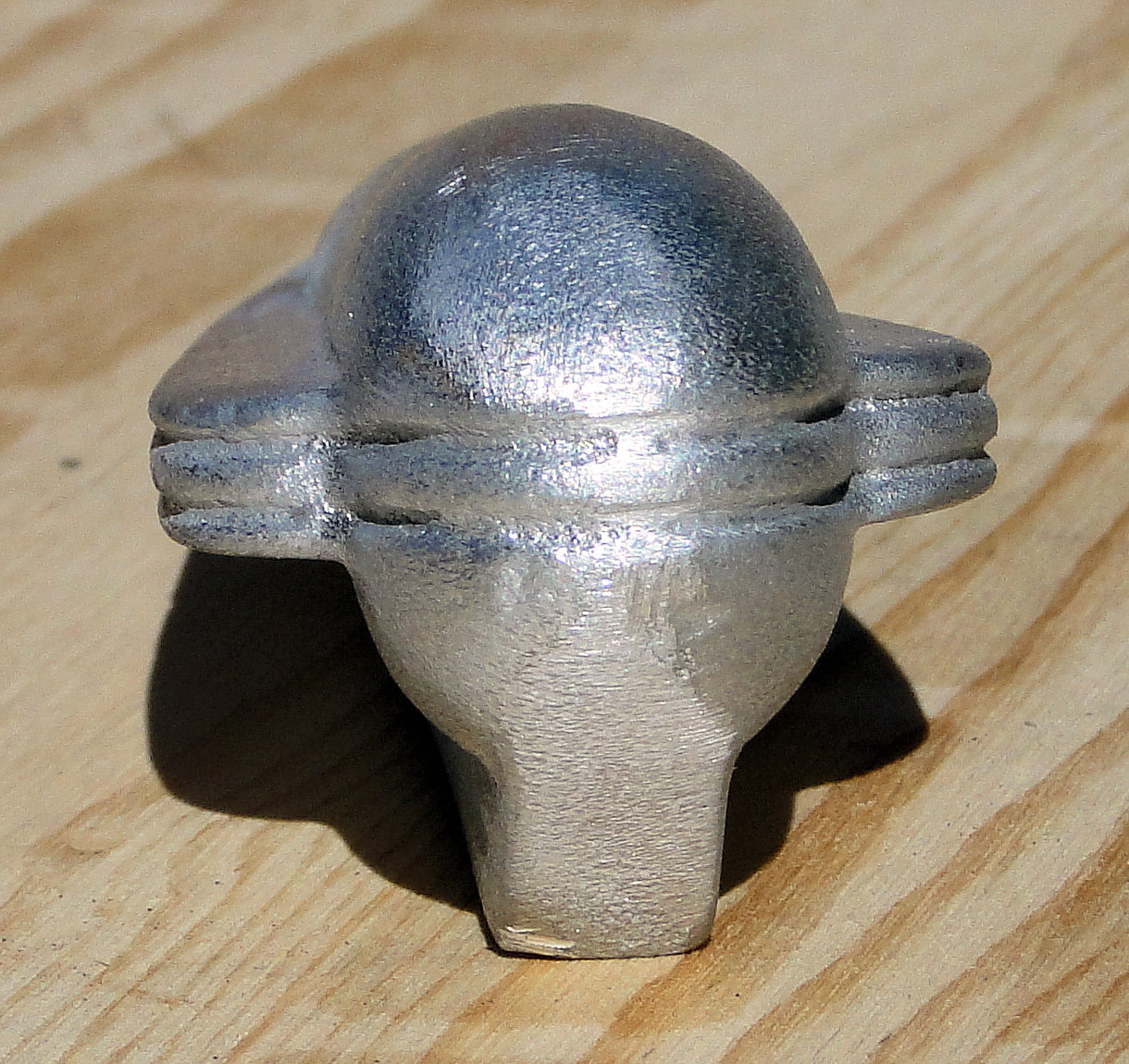

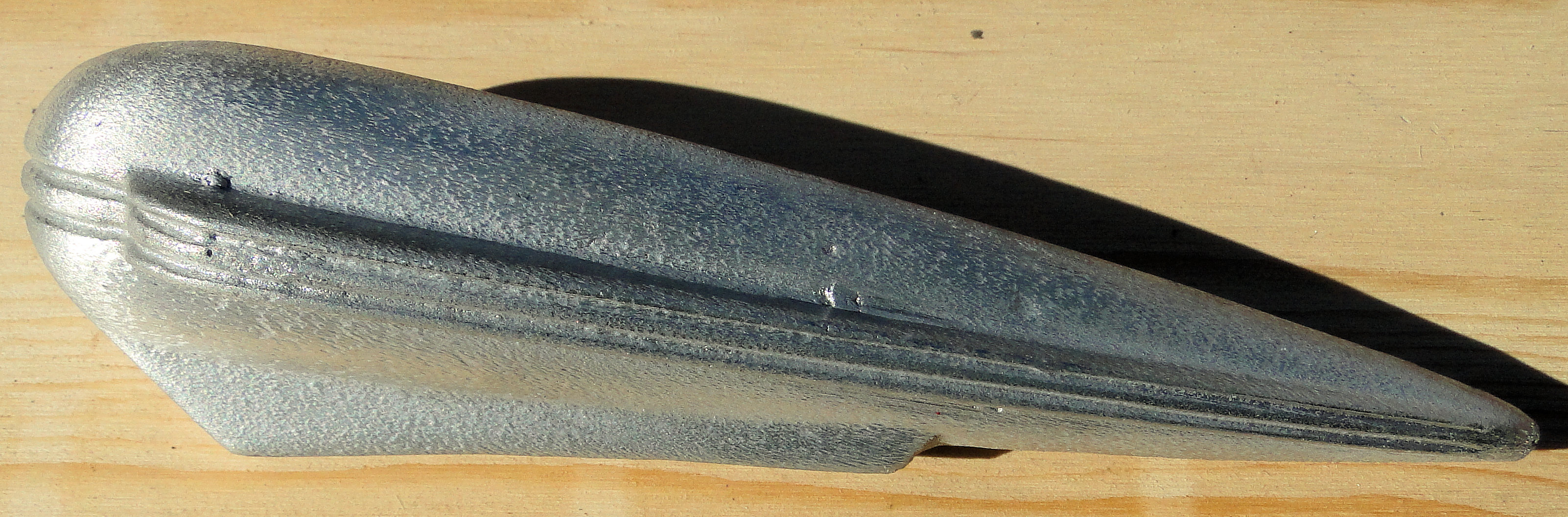

#265; Hood ornament
#266; Sheet metal screws

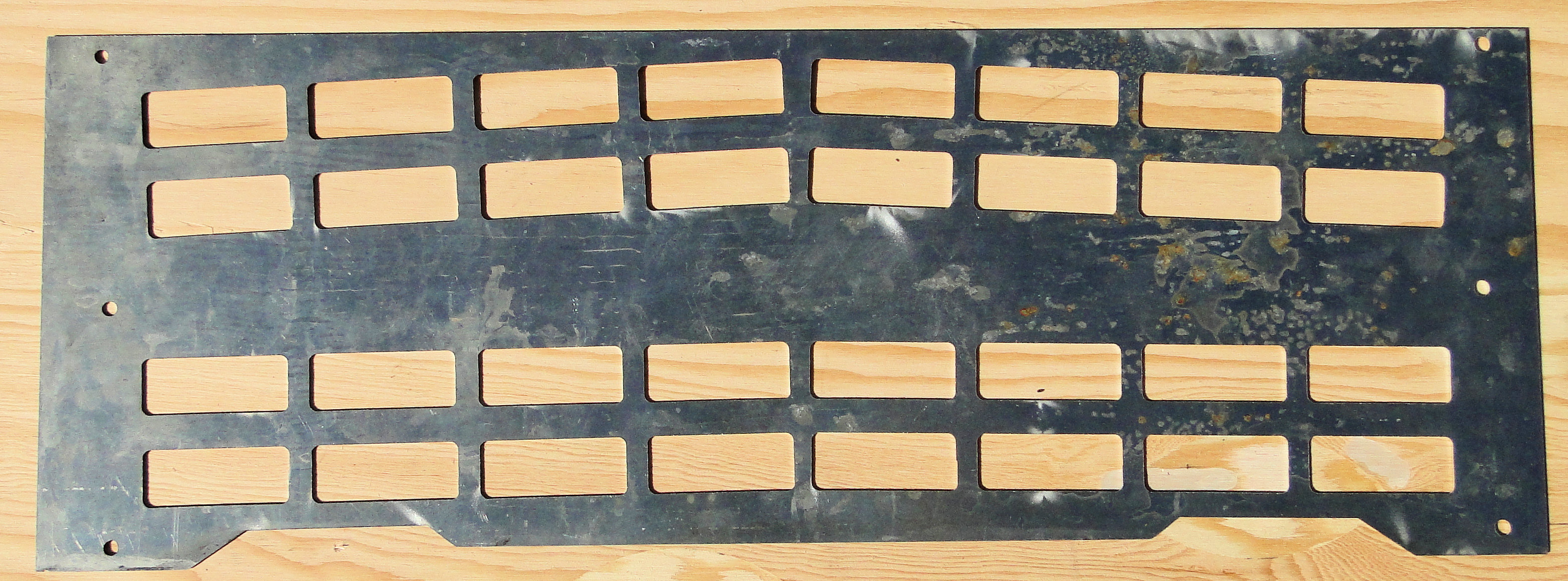

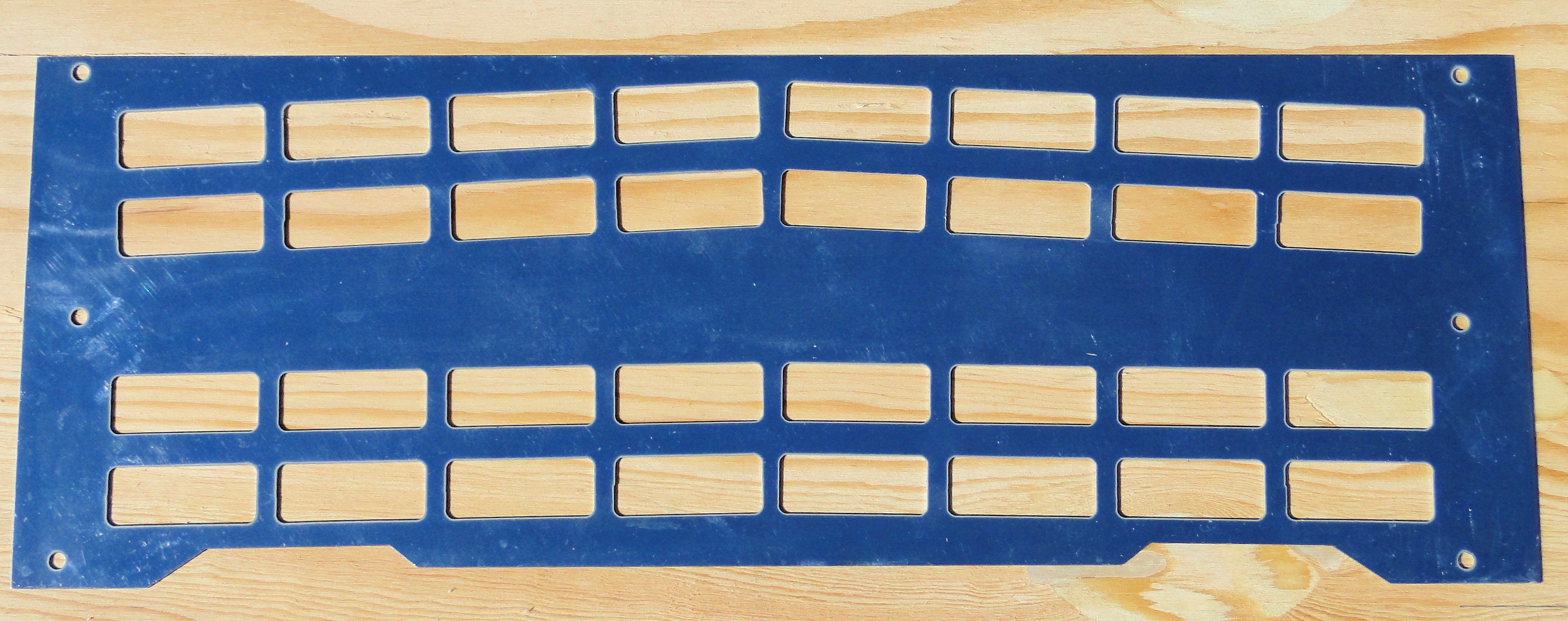

#267; Grill
#268; Headless studs
#269; Ground clip
#270; Plate washer
#271; Spring retaining clip
#272; Step plate; right & left

#273; Wood screws

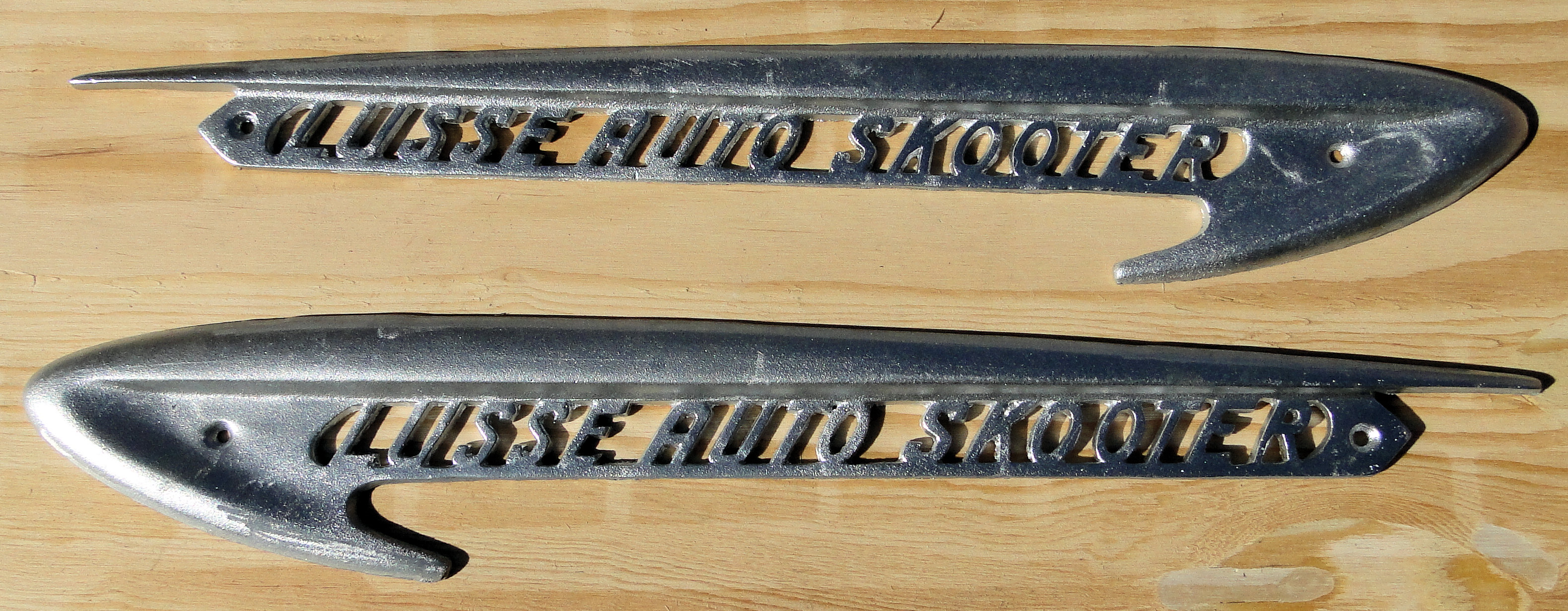

#275; Nameplate; righthand
#276; Nameplate; lefthand
#277; Screw
#278; Screw
#279; Side trim (half oval)

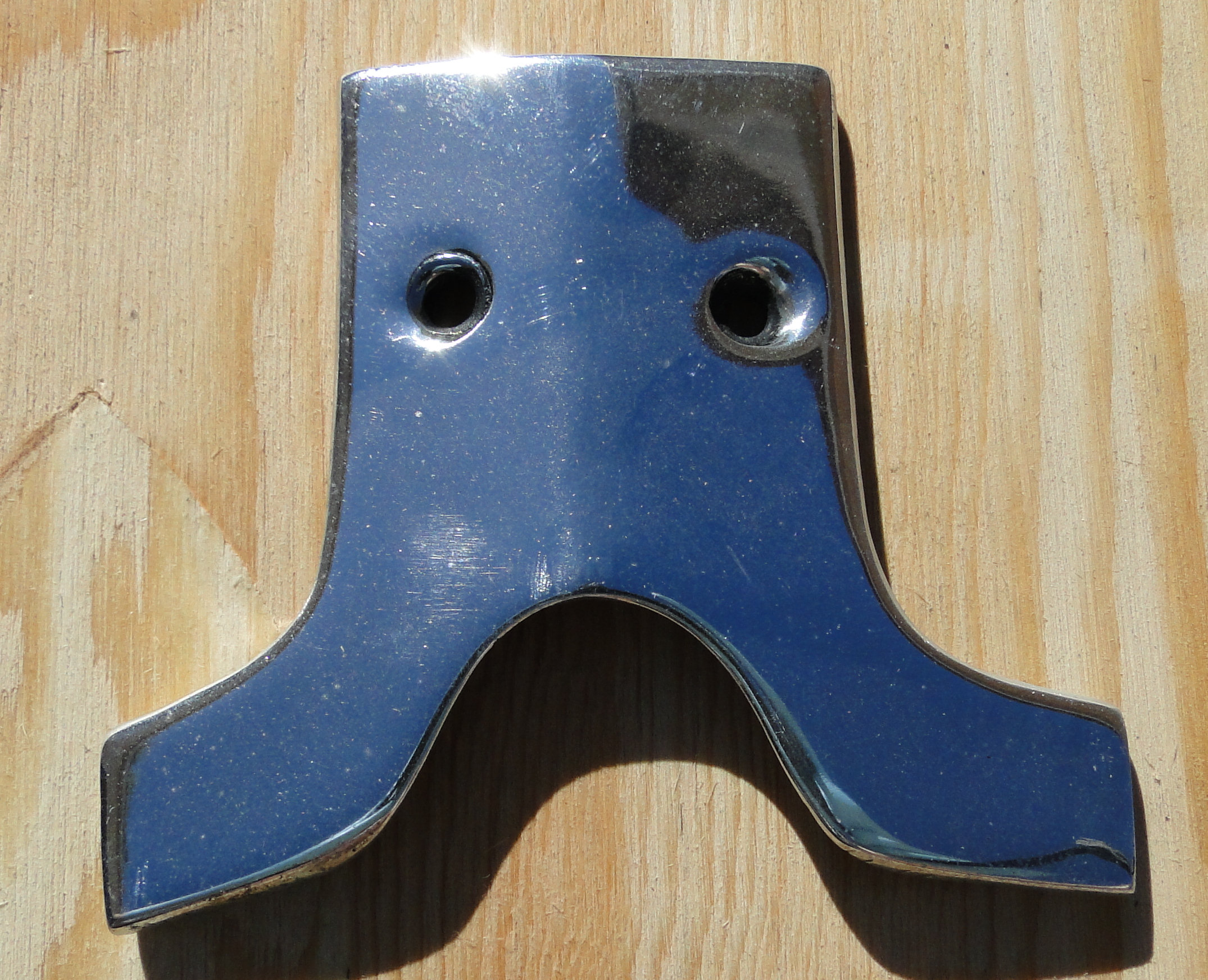

#280; Back trim (half oval)
#281; Screw

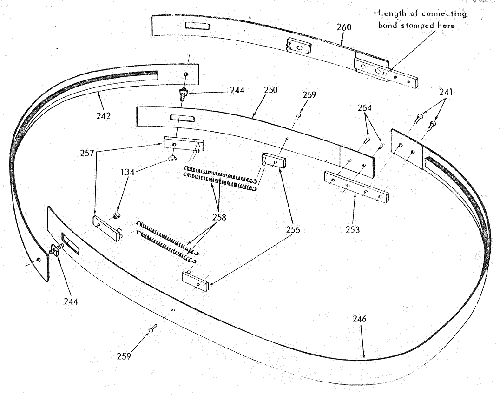

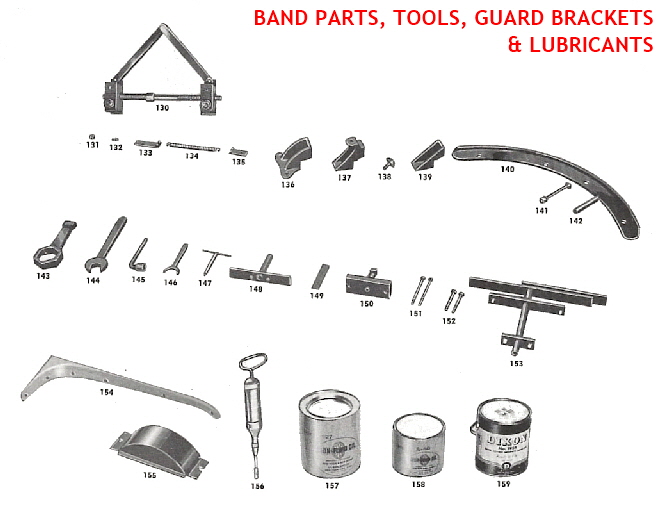

Band Parts (Bumper)

Parts List (Bumper Band)

#240: Bumper band, complete
#134: Kep nut; for rivet screw
#241: Screws
#242: Front band, complete w/#244 (5'11'')
#244: Square head rivet screw
#246: Back band
#250: Connecting band (specify length)


#253: Band block
#254: Rivet
#255: Short holding lug
#257: Long holding lug
#258: Springs
#259: Rivet
#260: Connecting band assembly; complete w/#250, #253, #255 (specify length)

Center Island Parts

Parts List (Center Island)

#410: Revolving bumper, complete
with base
#411: Hub Cap
#429: 8 inch Building spring, complete with clip
#430: 8 inch Building spring

#431: 11 inch Building spring, complete with clip
#432: 11 inch Building spring
#433: Bumper board support
#434: Angle iron for bumper boards

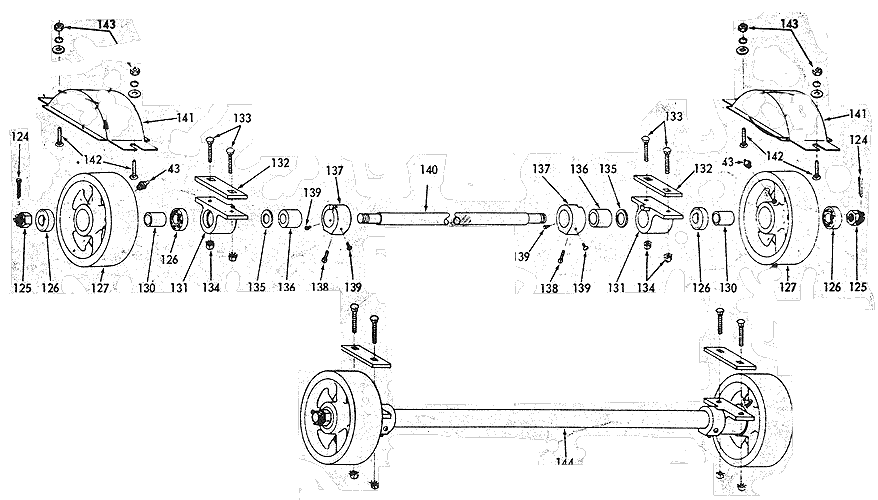

Rear Axle Parts

Parts List (Rear Axle)

#43: Alemite grease fitting
#124; Cotter pin
#125: Axle nut
#126: Rear wheel bearing; sealed

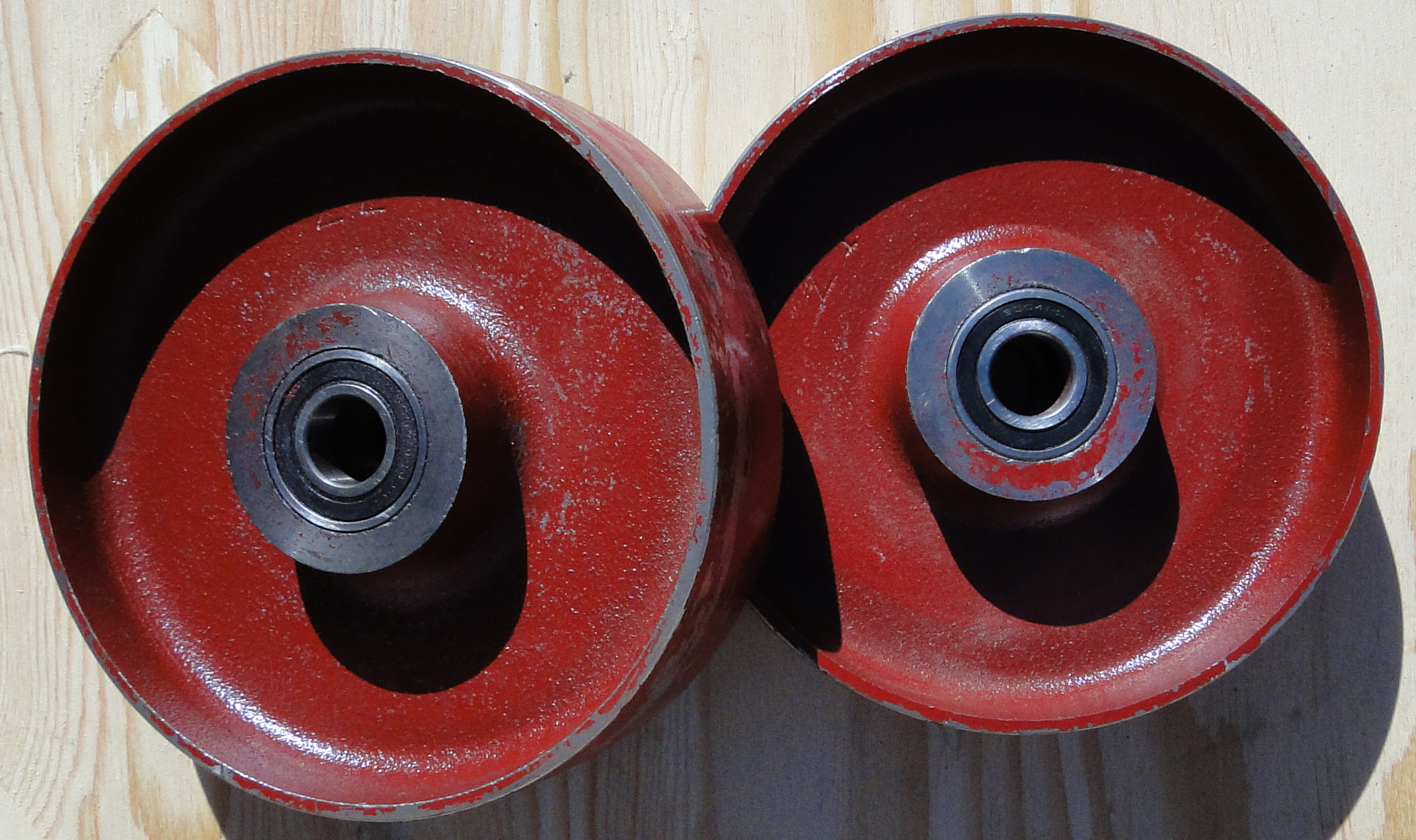

#128: Rear wheel assembly w/ #126, #128, #130: specify wheel or assembly
#130: Bearing spacer
#131: Bracket
#132; Plate
#133: Carriage bolt
#134: Kep nut

#135: Retaining washer
#136: Rubber bushing
#137: Collar
#138: Set screw
#139: Ground screw
#140: Rear axle

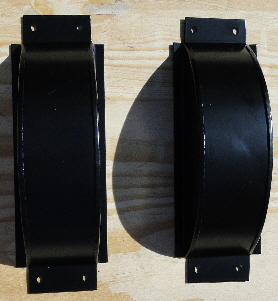

#141: Wheel cover
#142: Carriage bolt
#143: Kep nut
#144: Rear Axle assembly w/o wheel covers

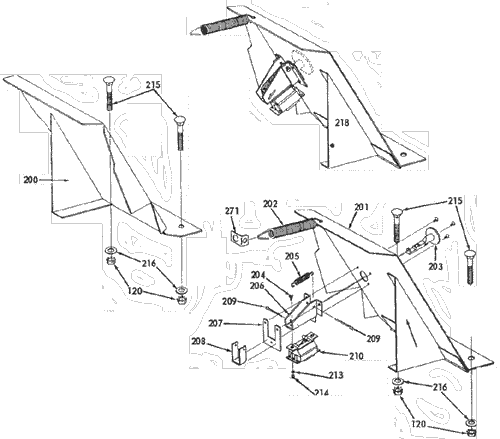

Electrical Parts (Switch)

Parts List (Switch)

#120: Kep nut

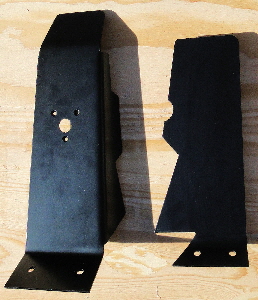

#200: Foot rest, right
#201: Foot rest, left
#202: Foot rest spring
#203: Pedal & shaft for operating switch
#204: Screws for mounting bracket
#205: Spring for switch
#206: Switch mounting bracket
#207: Mounting for #206

#209: Cotter pins
#210: Switch
#212: Screw
#213: Lock washer
#214: Nut
#215: Carriage bolt
#216: Flat washer
#218: Left foot rest assembly w/switch & parts #201 through #214
#271: Spring retaining clip

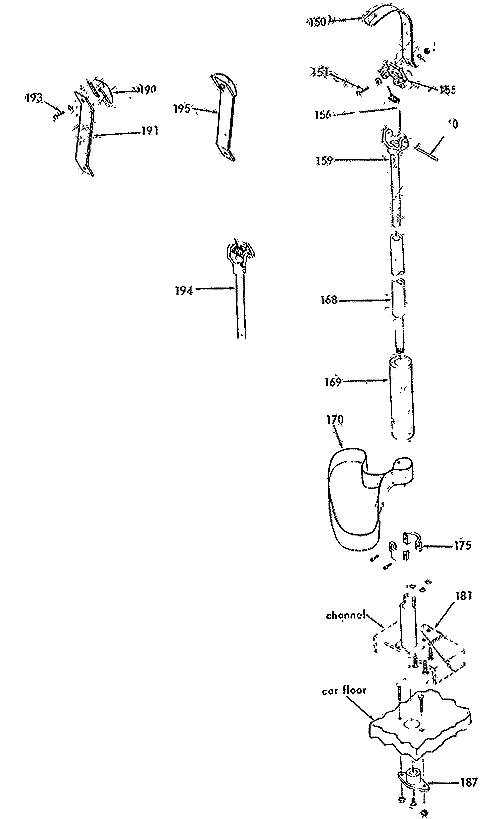

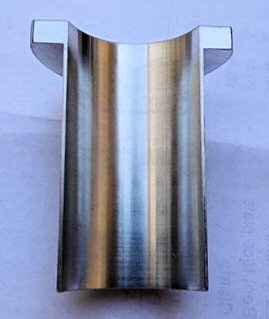

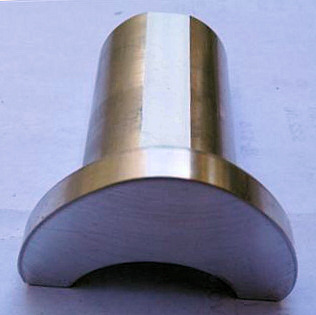

Trolley Pole Parts

Parts List (Trolley Pole)

#150: Ceiling wiper blade
#151: Set (nut, bolt & washers)
#155; Hinge; top half
#156: Spring
#159: Hinge; bottom half w/tube assembly
#160: Hinge pin
#168: Trolley pole; 8' standard
#169: Trolley pole cushion
#170: Safety strap

#181: Trolley pole body bracket assembly
#187: Trolley pole floor bracket assembly
#190: Half oval contactor
#191: Blade; for contactor
#193: Set (bolt & washer) for contactor
#194: Ceiling adapter assembly w/o wiper blade
#195: Ceiling adapter assembly w/half oval contactor

Safety & Upholstery Parts

Parts List (Safety & Upholstery)

#79: Steering wheel cushion
#93: Rubber jacket w/clip (for hood bracket)
#169: Trolley pole cushion
#170: Safety strap
#309: Seat unit; complete
(includes #310,   #322, #327, #328)

#310: Seat back
#322: Seat base
#327: Side panel, right
#328: Side panel, left
#329: Rubber cowl cushion strip
